- Intel® Cedar Trail™ platform, Atom N2600 1.6GHz Dual Core Processor
- 10.1” Sunlight Readable Display with with Transflective LCD, 2.000 nits
- Seamless communication functions, WWAN GPRS/3.5G/4G, GPS Tracker (optional)?
- Wide Temperature range -20°C to 50°C
- Outdoor viewable application?• Dual cameras support?
- RFID (NFC) module support?
- More than 12hrs operating time with Dual Batteries in 25°C environment?
- Wide coverage accessories to meet different deployment needs?
- Certified to MIL-STD-810G and IP65?
- Microsoft® WS7E and WS7P support

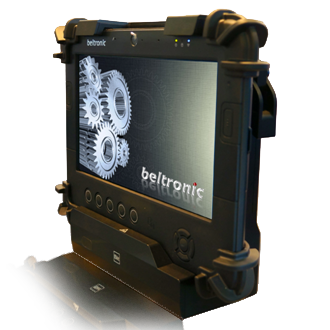

Bit Tradition delivers the best functionality and ergonomics for user application. Base on MIL-810G military standard reliability (high temperature, low temperature, shock, vibration, drop), the Fully-Rugged Tablet from Bit pass from -20°C to +50°C, highly transit shock and vibration, 6 feet drop resistant to concrete surface, and also IP65 fully sealed against water & dust damage. With sunlight readable (2.000 nits) touch screen coating technology, fanless thermal conduction design, and expansion flexibility for barcode scanner, MSR , GPS, WWAN, 4G, WIFI, GPS Tracker, RFID or wireless combo communication functions, our Bit-RTC 1016 Rugged Tablet can meet most of harsh outdoor environment application and will be the best tool of your job assistance.
Bit-RTC is the best choice for the industry professionals.
.System | |
CPU | Intel® Cedar Trail™ Atom N2600 1,6GHz Dual Core Processor |
RAM | Max. 2GB DDRII 800 Memory Down |
Storage | 32GB 1.8-inch Half-Slim SSD Installed |
Display | 10.1-inch LED Backlight Screen with 5-wire Resistive Touch |
Display Resolution | 1366 (W) x 768 (H) WXGA / 1280(W x 800(H) WXGA (option) |
Outdoor Viewable | Transflective plus type (= 2.000nits in direct sunlight) |
Audio | 2 x High Quality Speakers |
Communication | Wi-Fi IEEE 802.11 b/g/n and Bluetooth 2.1 3,5G or LTE / GPS (Option) |
RFID | - ISO/IEC 1443A, 1443B, 15693 - Mifare 1K/4K, Ultralight - NFC-IP1 Protocol |
Webcam | 2 Mega-pixel, audio input (Front Bezel) 5Mega-pixel, LED auxiliary light (Rear Bezel) |
TPM | 1 x Compatible with TPM 1.2 |
Light-Sensor | 1 |
I/O Ports | |
USB 2.0 Type A | 2 |
Microphone Jack | 1 |
Headphone Jack | 1 |
Docking Connector | 1 |
DC-Jack | 1 |
In Front Control | |
Power Button | 1 |
Lock Button | 1 |
Wi-Fi Button | 1 |
Navigation Button | 4+ Way Navigation button with integrated Enter button |
Program Function Button | 5 |
Trigger Button | 2 x Barcode buttons (Programmable) |
LED Indicator | Power Storage Wi-Fi |
Mechanical & Environmental | |
Dimension | 277.8 (W) x 206 (H) x 26.5 (D) mm |
Weight | 1.2kg (2.65lb) |
Certifications | CE, FCC, UL, VCCI, CCC; CE/FCC SAR |
Operation System | WES 7-WS7E, WES-WS7P |
Water/Dust Resistance | IP65 equivalent |
Drop | 64-ft drop (MIL-STD-810G Method 516.6 Procedure IV) |
Mechanical Shock | Operating : 20g, 11ms, Terminal sawtooth. Non-operating : 40g, 11ms, Terminal sawtooth |
Operation Temperature | -20°C to +50°C (MIL-STD-810G) |
Storage Temperature | -30°C to +70°C( MIL-STD-810G) |
Humidity | 5-90% without condensation |
Power Management | |
Battery | Internal Smart Lithium Polymer Battery, 3800mAh |
Power Adapter | AC 100V ~ 240V, 50~60Hz input; 19VDC@3.42A, 65W |
- MSR
- Barcode Scanner
- GPS : GP01
- GPS/GPRS Tracker : GT01
- DeskTop Docking : DT01 (RTC-1015-KE Model)
- DeskTop Docking : DT02 (RTC-1015-TE Model)
- DeskTop Docking : DT02 (RTC-1015-ME Model)
- External Battery Charger : EB100
- External Battery 4200mAh (Front)
- External Battery 4200mAh (Back)
- Vehicle Docking Kits : VD100 (RTC-1015-KE Modell) (Front)
- Vehicle Docking Kits : VD100 (RTC-1015-KE Modell) (Back)
- Vehicle Docking Kits : VD200 (RTC-1015-TE Modell) (Front)
- Vehicle Docking Kits : VD200 (RTC-1015-TE Modell) (Back)
- Vehicle Docking Kits : VD200 (RTC-1015-ME Model) (Front)
- Vehicle Docking Kits : VD200 (RTC-1015-ME Model) (Back)
- Carrying Case
- Carrying Case
- Hand Strap
- Hand Strap
- Shoulder Belt
- Stylus
- Handle Secures
