Features:

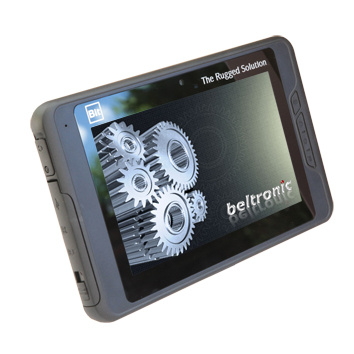

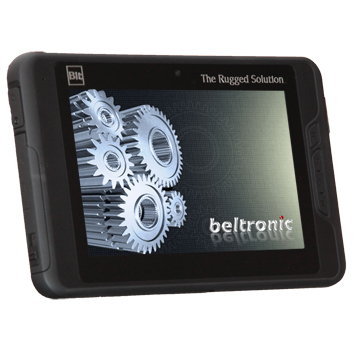

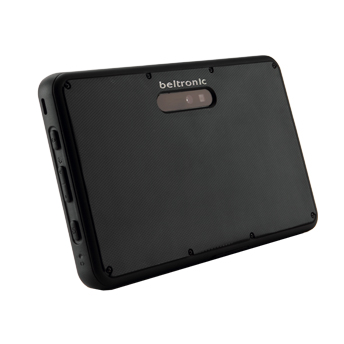

Bit-RTC 0710 Rugged Android 4.0 Tablet

Fully-Rugged Tablet

System
MPU	TI Cortex-A8 DM3730 1GHz MPU
System Memory	512 MB
Flash Memory	8GB moviNand on board
Storage	4GB - 16GB
Display	7" TFT LCD with 10 points Capacitive Touch Screen
Display Resolution	1024 x 600 Pixels & 400 nits
Outdoor Viewable	Transflective plus type
Audio	2 x High Quality Speakers
Communication	Wi-Fi IEEE 802.11 b/g/n and Bluetooth 2.1
RFID	- ISO/IEC 14443A, 14443B, 15693 - Mifare 1K/4K, Ultralight - NFC-IP1 Protocol
Webcam	1.3 Mega-pixel, audio input (Front Bezel) 2 Mega-pixel, LED auxiliary light (Rear Bezel)
G-Sensor	1
Light-Sensor	1
I/O Ports
USB 2.0 Type A	2
Microphone Jack	1
Headphone Jack	1
Docking Connector	1
DC-Jack	1
In Front Control
Power Button	1
Lock Button	1
Wi-Fi Button	1
Navigation Button	4+ Way navigation button with integrated enter button
Program Function Button	5
Trigger Button	2 x Barcode buttons (Programmable)
LED Indicator	Power Storage Wi-Fi
Mechanical & Environmental
Dimensions	131.8 x 220 x 18.8 mm
Weight	580g
Certifications	CE, FCC, VCCI, CCC; CE/FCC SAR
Operation System	Win CE 6.0 and Android 2.3
Water/Dust Resistance	IP54 equivalent
Drop	4-ft drop (MIL-STD-810G Method 516.6 Procedure IV)
Mechanical Shock	Operating : 20g, 11ms, Terminal sawtooth Non-operating : 40g, 11ms, Terminal sawtooth
Operation Temperature	0°C to +45°C (32°F to 113°F)
Storage Temperature	-20°C to +60°C (-4°F to 140°F)
Humidity	5-90% without condensation
Power Management
Battery	Rechargeable Polymer Type, 3850mAh
Power Adapter	AC 100V ~ 240V, 50~60Hz input; 19VDC@3.42A, 65W
