- Intel® Cedar Trail™ platform, Atom N2600 1.6GHz Dual Core Processor
- 7” Sunlight Readable Display with Transflective LCD, 1.000 nits
- Build-in RS232 and RJ-45 to fulfill field applications
- Seamless communication functions, WWAN GPS/3.5G/4G, GPS Tracker, RS232
- Slim, sealed, stronger and lighter style design?with only 0.85 kg
- RFID (NFC) module support?
- Wide temperature range -20°C to +50°C
- Certified to MIL-STD-810G, MIL-STD-461F and IP65?
- Microsoft® WS7E and WS7P support

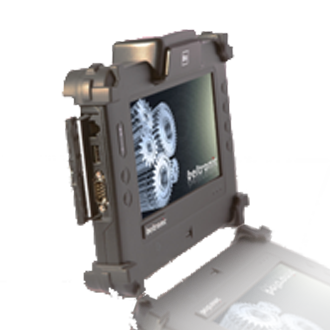

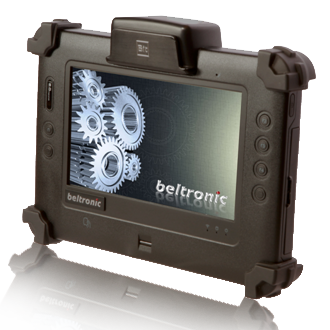

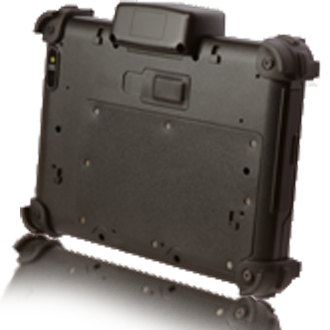

Bit Tradition delivers the best functionality and ergonomics for user application. Base on MIL-STD-810G and MIL-STD 461F military standard reliability (high temperature, low temperature, shock, vibration, drop), the Fully-rugged Tablet PC pass from -20°C to +50°C, highly transit shock and vibration, 4 feet drop free to concrete surface, and also IP65 fully sealed against water & dust damage. With sunlight readable ( 1.000 nits) touch screen coating technology, fanless thermal conduction design, and expansion flexibility for GPS, RFID, WIFI, WWAN, 4G or wireless combo communication functions, our Bit-RTC 0716 Rugged Tablet PC product can meet most of harsh outdoor environment application and will be the best tool of your job assistance.
Bit-RTC is the best choice for the industry professionals.
.System | |
CPU | Intel® Cedar Trail™ Atom N2600 1,6GHz Dual Core Processor |
RAM | Max. 2GB DDRII 800 Memory Down |
Storage | 32GB 1.8-inch Half-Slim SSD Installed |
Display | 7-inch LED Backlight Screen with 5-wire Resistive Touch |
Display Resolution | 1024(W) x 600 (H) WXGA |
Outdoor Viewable | Transflective plus type (=1000nits in direct sunlight) |
Audio | 2 x High Quality Speakers |
Communication | Wi-Fi IEEE 802.11 b/g/n and Bluetooth 2.1 3,5G or LTe (option) / GPS embedded |
RFID | - ISO/IEC 1443A, 1443B, 15693 - Mifare 1K/4K, Ultralight - NFC-IP1 Protocol |
Webcam | 2 Mega-pixel, audio input (Front Bezel) 5Mega-pixel, LED auxiliary light (Rear Bezel) |
TPM | 1 x Compatible with TPM 1.2 |
Light-Sensor | 1 |
I/O Ports | |
USB 2.0 Type A | 2 |
Microphone Jack | 1 |
Headphone Jack | 1 |
Docking Connector | 1 |
DC-Jack | 1 |
In Front Control | |
Power Button | 1 |
Micro SD slot | 1 |
RS232 Port | 1 |
Program Function Button | 4 |
Trigger Button | 1 |
LED Indicator | Power Storage Wi-Fi |
Mechanical & Environmental | |
Dimension | 277.8 (W) x 206 (H) x 26.5 (D) mm |
Weight | 1.2kg (2.65lb) |
Certifications | CE, FCC, UL, VCCI, CCC; CE/FCC SAR |
Operation System | WES 7-WS7E, WES-WS7P |
Water/Dust Resistance | IP65 equivalent |
Drop | 5-ft drop (MIL-STD-810G Method 516.6 Procedure IV) |
Mechanical Shock | Operating : 20g, 11ms, Terminal sawtooth. Non-operating : 40g, 11ms, Terminal sawtooth |
Operation Temperature | -20C to +50°C (MIL-STD-810G) |
Storage Temperature | -30°C to +70°C MIL-STD-810G |
Humidity | 5-90% without condensation |
Power Management | |
Battery | Internal Smart Lithium Polymer Battery, 3800mAh |
Power Adapter | AC 100V ~ 240V, 50~60Hz input; 19VDC@3.42A, 65W |
- MSR
- Barcode Scanner
- GPS : GP01
- GPS/GPRS Tracker : GT01
- DeskTop Docking : DT01 (RTC-1015-KE Model)
- DeskTop Docking : DT02 (RTC-1015-TE Model)
- DeskTop Docking : DT02 (RTC-1015-ME Model)
- External Battery Charger : EB100
- External Battery 4200mAh (Front)
- External Battery 4200mAh (Back)
- Vehicle Docking Kits : VD100 (RTC-1015-KE Modell) (Front)
- Vehicle Docking Kits : VD100 (RTC-1015-KE Modell) (Back)
- Vehicle Docking Kits : VD200 (RTC-1015-TE Modell) (Front)
- Vehicle Docking Kits : VD200 (RTC-1015-TE Modell) (Back)
- Vehicle Docking Kits : VD200 (RTC-1015-ME Model) (Front)
- Vehicle Docking Kits : VD200 (RTC-1015-ME Model) (Back)
- Carrying Case
- Carrying Case
- Hand Strap
- Hand Strap
- Shoulder Belt
- Stylus

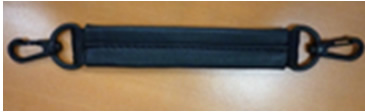

- Handle Secures
