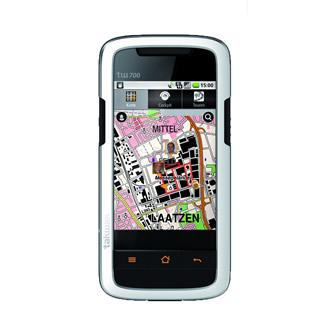

- The compact RND-0405-tw700 combines Outdoor Navigation, Smartphone, Walkie Talkie and unique Group Navigation in a single device
 - The RND-0405-tw700 is IP57-certified and is thus perfectly suitable for outdoors (water-proof, dust-resistant, shock-proof)
 - 3,5” resistive touch screen (320 x 480 pixels), can be operated with gloves and in water
 - Exchangeable, high capacity (2700mAh), rechargeable battery
 - Integrated camera (5 Megapixels)
 - Comes with 2GB microSD card, including pre-installed Open Street Maps for DACH+UK+ North Italy; Can be expanded to up to 32 GB of memory
 - Dimensions: 131 x 66,5 x 20 millimeters
 - Weight: only 205 grams (including battery)

Bit Tradition introduces during the EUROSATORY 2012 the new IP 57 Rugged Navigation Device RND-0405-tw700, which combines Rugged Navigation unit, Rugged Smartphone, Rugged Walkie-Talkie and innovative Group navigation capability. The multifunctional all-rounder doesn’t just enable to navigate safely and quickly to destination when trekking, but also allows communicating and exchanging data easily with other RND users during their mission. The group navigation feature also enables virtual connection between a numbers of RND devices. Discover the rich functionality of the RND-0410-tw700.
DIMENSIONS | WEIGHT | |
Size | HxWxD  | approx. 131 x 66.5 x 20 mm  |
Weight  | 204 g incl. battery  |
DISPLAY | |
Size | HxW  | 74 x 49 mm 3.5 inch (89 mm) diagonal  |
Touchscreen  | Resistive, operable with gloves and in the rain  |
Resolution  | 320 x 480 pixels  |
Number of colours  | 16.7 million colours  |
Diagonal  | 3.5 inch | 8.9 cm  |
BATTERY | |
Power  | Li-Ion 3.7 V / 2700 mAh  |
Navigation only  | 12 hours  |
PROTECTION LEVEL | |
Water  | IPX7 (30 min / 1 m depth)  |
Dust  | IP5X  |
Shock resistance  | MIL-STD 810F/516.6&522  |
PROCESSOR | |
ARM Cortex A9  | 533 Mhz / 2 (Dual Core)  |

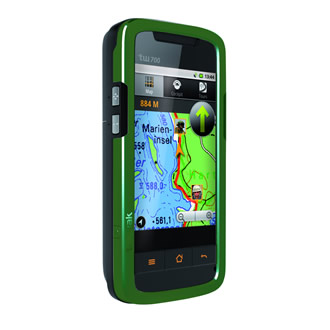

OUTDOOR NAVIGATION SENSORS | HARDWARE | FUNCTIONS | |
GPS receiver  | SiRFstarIV™ receiver supports Self-Assisted GPS  |
Electronic compass  | Yes (3 axes)  |
Barometric altimeter  | Yes  |
Acceleration sensor  | Yes  |
Data transfer from device to device  | Via Bluetooth  |
MAPS & MEMORY | |
PC interface  | microSD card via USB  |
Pre-installed map material (microSD)  | World overview, DACH (Germany, Austria, Switzerland), UK, North Italy  |
Other map availability  | Topo maps & other OSM map regions can be downloaded with tw0  |
Waypoints  | Unlimited  |
Routes  | Unlimited  |
Track recording  | Unlimited  |
GROUP FUNCTIONALITY | |
Group formation  | With any number of tw700s  |
Group navigation  | Guidance, personal guidance  |
Internal group communication  | GSM, PTT, SMS, Instant Messageing, Chat  |
Direct data exchange  | Images, tracks etc  |
SMARTPHONE | |
Operating System  | Android Version: 2.2**  |
Network standards  | GSM (900 / 1800 / 1900 Mhz) GPRS/EDGE  |
Data transmission  | GPRS Class 10 / EDGE (EGPRS) / max. speed 237 Kbit/s  |
WLAN standard  | 802.11b/g/n  |
WLAN encryption  | WEP, WPA / WPA2 with TKIP / AES-CCMP  |
Bluetooth  | Ver. 2.1+EDR, Power class2 / Headset Profile / A2DP  |
USB  | Yes, USB 2.0 / USB headphones interface  |
MEMORY | |
FLASH  | 2 Gbyte of which 1 GB freely available  |
RAM  | 512 Mbyte Mobile DDR  |
expandable with  | microSD (up to 32GB)  |
CAMERA | |
Resolution  | 5.0 megapixels  |
Video resolution  | VGA (640 x 320)  |
LED lighting  | Yes  |
MUSIC & VIDEO | |
Ringtone formats  | AAC, AAC+, MP3, MIDI, WAV, AMR-NB  |
Vibrating alarm  | Yes  |
MP3-player  | Yes  |
Video player  | Yes (H.263, H.264-AV, MPEG4-SP)  |
SOFTWARE MARKET | |
AndroidPit  | |

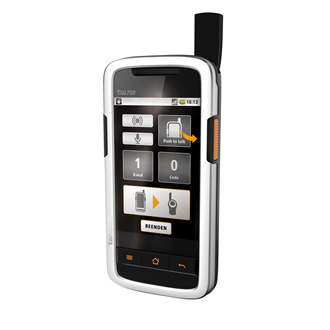

WALKIE TALKIE | |
Transmitting power  | 0.5 Watt  |
Frequency band  | 446 Mhz (PMR)  |
Range  | Up to 10 km*  |
Number of channels  | 8  |
Configurable Sub Tones  | 38 CTCSS  |
Roger beep  | Yes  |
Ring alert  | Yes  |
Encryption  | Yes  |
Channel search function  | Yes  |
Configurable VOX / voice activation  | Yes  |
Time Out Timer (TOT)  | Yes  |
Configurable squelch  | Yes  |

- Bike Mount

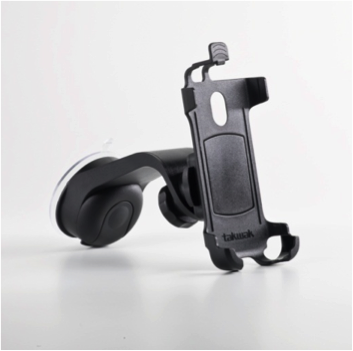

- Car Mount

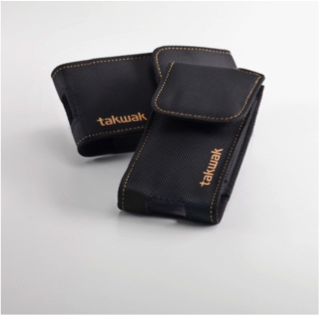

- Carry Case

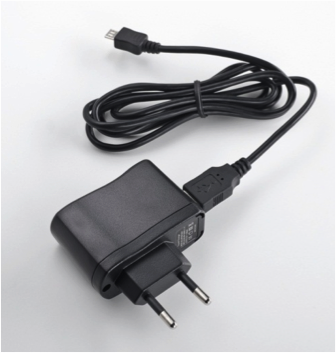

- Charger


- Communication Support


- Headset


- Spare Battery
