- High Integrated Computer System
- IP65 enclosure with IP54 external rear fans
- 1x CRT output
- 2x DVI output
- Intel T7400 Core2Duo Processor
- 4 Gbyte Main Memory
- Removable Mass Storage with HDD or SSD
- Wide Range DC Supply (17-36V)
- Wide temperature operating range -40° to +55°C
- Integrated Smart Heating System with temperature and fan monitoring
- 1 Years Warranty
Bit-IPC MIL
Bit IPC-MIL: the best choice for the industry & military professionals.
Bit-IPC-MIL full rugged computers systems have been developed to provide you a fully integrated computing platform to be used under harsh environmental conditions and applications. Bit IPC-MIL computers are designed for usage in 19” rack mount assemblies or stand-alone and, due to excellent specification, can be used with or without additional shelters in stationary, mobile, vehicle or even flying application.
Bit-IPC-MIL full rugged computer systems have been developed and are produced in Germany, empowered by the long running experience of BIT Tradition GmbH in providing best possible and reliable solutions for our customer’s applications.

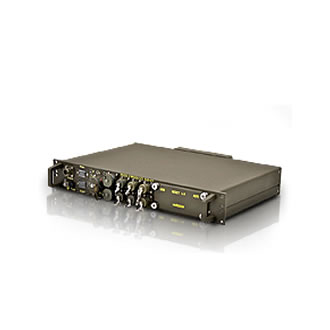

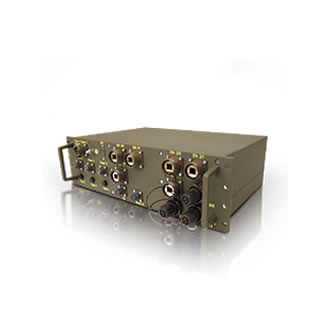

Bit-IPC-MIL full rugged computer systems are available in 1.5u and 4u. Their modular design makes it very easy, to modify the units to customer requirements in terms of functionality and interfaces.
Bit-IPC-MIL full rugged computer systems are perfect fitting computer systems to drive Bit Traditions GmbH’s full rugged displays to expand the overall environmental withstanding to highest possible level of reliability in customer’s applications.
Computer System | |
CPU Card | miniITX Core2Duo Board |
Chipset | Intel 945 GME Chipset |
CPU | Intel Core2Duo T7400 Prozessor (2,16 GHz) |
Memory | DDR2, 4 Gbyte |
Graphic Controller | Chipset Integrated with dual DVI or single DVI and Single CRT |
Storage DevicesMass Storage | |
Interfaces | 80 GByte HDD or 64 GByte SSD in removable frame (see option list) |
USB | USB 2.0 ports integrated in HID interfaces |
VGA | HID-CRT - VGA/CRT Interface with PS/2, USB and RS232 (IP65 Round Connector) |
DVI | HID-DVI – DVI Interface with 2x Single Channel DVI and 2x USB 2.0 (IP65 Round Connector) |
Ethernet | RJ45 with 10/100/1000 mBit/s (IP65 Round Connector) |
Power | |
Supply | Voltage DC17V-36V DC input on IP65 Round Connector (MIL 1275 compliant) |
Mechanics | |
Material | Precision milled aluminum enclosure |
Coating / Painting | Surtec 650 surface treatment with olive powder coating |
Outside Dimensions | 19” width rack mount with 1.5u or 4u, depth ~350mm |
Weight | ~ 8 kg |
Special Features | HDD/SSD removable drive behind Cover |
Environmental Conditions | |
Temperature | -40°C – 55°C Operating (Pre-Heating System is integrated in smart power supply) MIL-STD 810F, Method 501.4, Proc. II (Operating), Climatic Category Hot MIL-STD 810F, Method 502.4, Proc. II (Operating), Climatic Category Basic Cold (C1) -46°C – 71°C Storage MIL-STD 810F, Method 501.4, Proc. I (Storage), Climatic Category Hot MIL-STD 810F, Method 502.4, Proc. I (Storage), Climatic Category Cold (C2) |
Humidity | 5% - 95% rh non condensating MIL-STD-810F, Method 507.4 |
Operating Altitude | 4570 m Operating MIL-STD 810F, Method 500.4, Proc II (Operating) 12000 m Storage MIL-STD 810F, Method 500.4, Proc I (Storage) |
Vibration | 2g 10-200 Hz, all 3 axis MIL-STD 810F, Method 514.5, Proc. I (General Vibration) (limited to 2g with HDD Option) |
Shock | 50g 18ms, all 3 axis MIL-STD 810F, Method 516.5, Proc. I (Functional Shock) |
IP Protection | IP65 (DIN EN 60259 / IEC 529) IP55 (DIN EN 60259 / IEC 529) only for rear side fans |
MIL-STD | All references to MIL-STD 810F are “designed and build to be complaint to” |
EMC / EMI | |
CE | DIN EN 55022: 1998-04 Class A DIN EN 55024: 2003-10 (DIN EN 61000-4-2: 2001-12, DIN EN 61000-4-3: 2001-12, DIN EN 61000-4-4: 2002-07, DIN EN 61000-4-5: 2001-12, DIN EN 61000-4-6: 2001-12, DIN EN 61000-4-8: 2001-12, DIN EN 61000-4-11: 2001-12) DIN EN 61000-3-2: 2001-12 DIN EN 61000-3-3: 2002-05 DIN EN 60950/A11:1997 |
MIL-STD 461F | Conducted Susceptibility CS101, CS114, CS115, CS116 Conducted Emission CE102 Radiated Emission RE102 Radiated Susceptibility RS103 |
MIL-STD | All references to MIL-STD 461F are “designed and build to be complaint to” |
Ordering Information | |
Art.Nr. 00000689 | BIT-IPC-0022D-MIL-1H5 BZ2.1 (without HDD/SSD, without external cabling) |
Art.Nr. 00001743 | BIT-IPC-0022D-1H5 BZ 2.1 Option HDD 80GByte |
Art.Nr. 00001744 | BIT-IPC-0022D-1H5 BZ 2.1 Option SSD 64GByte |
Art.Nr. 00001746 | BIT-IPC-00xx-MIL-1H5 DC Power Kabel 3m |
Art.Nr. 00001745 | BIT-IPC-00xx-MIL-1H5 HID-CRT Interface Splitter (30 cm) |
Art.Nr. 00000691 | BIT-IPC-00xx-MIL-1H5 HID-DVI Interface Splitter (30 cm) |
