Features:

Sunlight-viewable Touchscreen with Panasonic CircuLumin™ Technology²

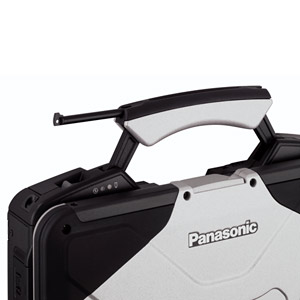

Full Magnesium Alloy Case with Handle
Desktop-class Performance
3G Mobile Broadband and GPS-ready Design

Toughbook CF31

Ultra Rugged Notebook

Powerful, Rugged and Wireless.

Panasonic presents the Toughbook 31, the reliable laptop offering the highest performance in its class along with the world's most rugged design. With drop shock protection and a MIL-STD-810G and IP65 certification1, it's the undisputed leader in the fully-rugged category. Its 2nd gen Intel Core™ i5 vPro™ and i3 processors* along with available discrete graphics, pack a punch, to deliver desktop-class performance and improved video/3D graphics. The Toughbook 31 offers a 13.1" brilliant 1100 nit touchscreen available with Panasonic CircuLumin™ technology, integrated webcam and up to 11 hours of battery life. Six generations of delivering rugged performance plus eleven years of consistent docking compatibility, and you have a computer that will go the distance with you anytime, anywhere.

* model CF-31A

2nd generation Intel® Core™ i5 vPro™ processor.
Intel, the Intel logo, Intel Core, Intel vPro, Core Inside and vPro Inside are trademarks of Intel Corporation in the U.S. and/or other countries.

Durability	MIL-STD-810G certified (6' drop, shock, vibration, rain, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)₃ MIL-STD-461F certified IP65 certified sealed all-weather design₃ Hard drive heater Full magnesium alloy case with handle Shock-mounted flex-connect hard drive with quick-release Reinforced locking port covers Pre-installed replaceable screen film for touchscreen protection
Software	Genuine Windows® 7 Professional 32-bit₄ or Genuine Windows® 7 Professional 64-bit₄ Panasonic Utilities, Recovery Partition
CPU₅	Intel® Core™ i5-2540M vPro™ Processor – 2.6GHz with Turbo Boost up to 3.3GHz – Intel Smart Cache 3MB Intel® Core™ i5-2520M vPro™ Processor – 2.5GHz with Turbo Boost up to 3.2GHz – Intel Smart Cache 3MB Intel® Core™ i3-2310M Processor – 2.1GHz – Intel Smart Cache 3MB
Storage & Memory	i5 models: 4GB SDRAM (DDR3-1333MHz), expandable to 8GB_6,7 i3 model: 2GB SDRAM (DDR3-1333MHz), expandable to 8GB_6,7 Shock-mounted flex-connect hard drive with quick-release – 320GB 7200rpm (i5 models), 320GB 5400rpm (i3 model)₇ – Optional 128GB and 256GB solid state drives (SSD)₇
Display	13.1" XGA sunlight-viewable touchscreen LED 1024 x 768 – Panasonic CircuLumin™ technology – 2-1200 nit – Circular polarizer₂ – Anti-reflective and anti-glare screen treatments 2540M CPU with switchable graphics in BIOS: – ATI Radeon™ HD6750, 512MB dedicated VRAM – Intel QM67 video controller, max. 1428MB shared VRAM with 32-bit₆ 2520M CPU: – Intel QM67 video controller, max. 1428MB shared VRAM with 32-bit₆ 2310M CPU: – Intel HM65 video controller, max. 1428MB shared VRAM with 32-bit₆ External video support up to 1280 x 1024 at 16.7 million colors Concealed mode
Audio	Intel® high-definition audio compliant Integrated front-facing speaker Keyboard volume and mute controls
Keyboard & Input	Touchscreen Integrated stylus holder 87-key with dedicated Windows® key Pressure-sensitive touchpad with vertical scrolling support
Multimedia Bay	Optional DVD Super MULTI Drive or 2nd battery
Expansion Slots	PC card type II x 1 SD card (SDXC) ExpressCard/54 x 1

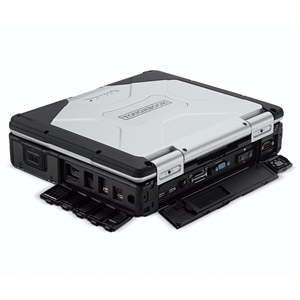

Interface	Docking connector 80-pin HDMI Type A VGA D-sub 15-pin Headphones/speaker Mini-jack stereo Microphone/line in Mini-jack stereo Serial D-sub 9-pin Ext. antenna conn. 50 ohm coaxial USB 2.0 (x 4)—optional USB 3.0 (x1)8 4-pin Optional IEEE 1394a (FireWire) 4-pin 10/100/1000 Ethernet RJ-45 Optional 10/100 2nd LAN (Ethernet) RJ-45 Optional 56K Modem RJ-11
Wireless	Optional integrated LTE 4G mobile broadband (Fall 2011) Optional integrated Gobi™2000 3G mobile broadband Intel® Centrino® Advanced-N 6205 802.11a/b/g/n (i5 CPU models) Atheros 802.11b/g/n (i3 CPU model) Bluetooth® v2.1 + EDR (Class 1) Security – Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP – Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES User-selectable antenna pass-through (single standard, dual optional) Slide on/off switch
Power Supply	i5 CPU: – Battery operation: 13.5 hours (2520M), 12.5 hours (2540M running Intel graphics), 7.5 hours (2540M CPU running ATI graphics)⁹ – Long life Li-Ion battery pack (10.65V, typical 8550mAh, minimum 8100mAh) – Battery charge time: 3.5 hours off, 4.5 hours on⁹ i3 CPU: – Battery operation: 7.5 hours (with lightweight battery)⁹ – Lightweight Li-Ion battery pack (10.8V, typical 4500mAh, minimum 4200mAh) – Battery charge time: 2 hours off, 2.5 hours on⁹ Optional media bay 2nd battery: 6.5 additional hours (2520M and 2310M models)¹ AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching worldwide power supply
Power Management	Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
Security Features	Password Security: Supervisor, User, Hard Disk Lock Kensington cable lock slot Trusted platform module (TPM) security chip v.1.2₂ Computrace® theft protection agent in BIOS₁₀ Intel® Anti-Theft Technology (i5 CPU models) Optional fingerprint reader Optional SmartCard reader
Warranty	3-year limited warranty, parts and labor
Dimensions & Weight	11.5"(L) x 11.9"(W) x 2.9"(H) 7.9 or 8.2 lbs. (varies by battery type)
Integrated Options₁₁	LTE 4G mobile broadband (Fall 2011) Gobi™2000 3G mobile broadband (EV-DO Rev. A, HSPA) Webcam² GPS receiver Backlit keyboard – sealed rubber or plastic emissive 2^nd LAN (10/100)² or FireWire or Modem USB 3.0 port (x1)⁸ SmartCard reader Fingerprint reader Media bay 2^nd battery¹ HDD and battery lock 128GB and 256GB solid state drives (SSD)
Accessories₁₁	AC Adapter (3-prong) CF-AA5713AM Lightweight Battery Pack CF-VZSU65AU Long Life Ion Battery Pack CF-VZSU46AU Media Bay 2^nd Battery¹ CF-VZSU1431U Battery Charger CF-VCBTB2W LIND 3-Bay Battery Charger PACH329-1857-P LIND Car Adapter 120W CF-LNDDC120 LIND Car Adapter 120W Mounting Bracket CF-LNDBRK120 LIND Shutdown Timer CF-LNDLPT InfoCase ComUniversal Carrying Case (large capacity) TBCCOMUNV-P InfoCase Backpack TBCBPK-P InfoCase Sling 31 Case TBC31CASE-P DVD Super MULTI Drive CF-VDM311U Memory Cards – 2GB DDR3 CF-WMBA1002G – 4GB DDR3 CF-WMBA1004G Desktop Dock CF-VEB311U Vehicle Dock – no pass-through See Dealer – single pass-through See Dealer – dual pass-through See Dealer Touchscreen Large Stylus with Tether Hole CF-VNP009U Tether CF-VNT002U 13.1" LCD Protector Film CF-VPF15U
Please consult your reseller or Panasonic representative before purchasing. ₁ Not available on 2540M. ₂ On i5 CPU models only. ₃ Tested by national independent third party lab following MIL-STD-810G Method 516.6 Procedure IV for transit drop test and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3 for IP65. ₄ A full set of Windows XP drivers are available at panasonic.com/toughbook/support. ₅ An Intel Core i7 processor is also available. ₆ The size of the VRAM cannot be set by the user and varies by operating system as well as size of RAM. Windows 7 64-bit max. VRAM is 1696MB with 4GB of memory. ₇1GB = 1,000,000,000 bytes. ₈ Replaces one USB 2.0 port. ₉ Battery performance features such as charge time and life span can vary according to the conditions under which the computer and battery are used. Battery operation and recharge times will vary based on many factors, including screen brightness, applications, features, power management, battery conditioning and other customer preferences. Battery testing results from MobileMark 2007 running Windows 7 Professional. ₁₀ Requires software and activation to enable theft protection. ₁₁ Accessories and Integrated Options may vary depending on your notebook configuration.
