Features:
- 5.25”x3 +3.5”x2 drive bays for RAID 0, 1, 5 & CD-ROM
- Two ball-bearing cooling fans for better ventilation
- Traditional rack-mount handles
- Two card retainer positions
- 2 USB ports
- One modularized function panel for
- single(default) and dual (optional) systems
- ATX M/B applicable, especially for big-AT
- sized M/B
- PS/2 redundant power supply installable

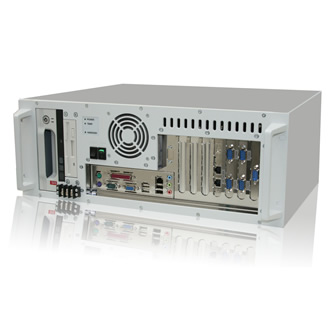

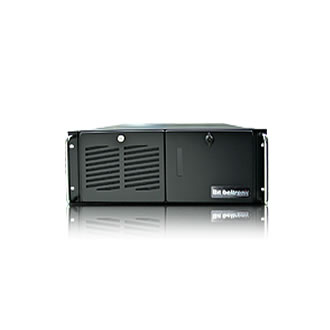

4U Rackmount Industrial Computer, Intel i7 930 2.8GHz CPU, Intel X58/ICH10R Chipset, 2GB DDR3 RAM, 80GB SATA HDD, DVD-ROM, 1xPCIe x16 /2x PCIe x8 (el. 4)/4xPCI Slots, Gbit LAN, 8xUSB, 1xCOM, Audio, 400W
- Height, Units: 4 U
- Processor (CPU): Intel Core i7
- Extension Cards (Extension Cards, All): 6
- Type of Power Supply: ATX PS/2
- Output Power: 400 W
Construction | |
Construction | Heavy-Duty Steel Chassis |
Mounting Configuration | 19" Rackmount |
Height, Units | 4 U |
CPU Card | |
CPU Board Form Factor | ATX 12""x9.6"" |
Processor | |
CPU: | Intel Core i7 |
Number of CPU: | 1 |
CPU Socket: | LGA 775 |
Front Side Bus Frequency: | 1333 MHz |
Chipset | Intel X58 (ICH10R) |
System Memory | |
Maximum Memory Size | 24 GB |
Memory Type | DDR3 1333 |
Memory Sockets | 6xDDR3 DIMM 240pin |
BIOS | Phoenix |
VGA | DB15, DVI (HDMI over PCI Express x16 Grafikadapter) |
Ethernet | |
Channels: | 1 |
1000Mbps: | 1 |
Connector: | RJ45 (Realtek 8111DP) |
Serial ATA | |
Controller | Chipset Integrated |
Channels | 6 |
RAID Controller | |
Type | Chipset Intergrated |
RAID Level | Level 0, Level 1, Level 5, 10 |
USB | |
Ports | 8 |
Specification | Rev. 2.0 |
Realtek ALC663 5.1 | |
Audio | 1...255 sec |
Watch Dog Timer | |
Extension Slots | |
Extension Cards | 6 |
Extension Cards, All | |
Extension Slots | 4 |
PCI | 2 (electrical PCIe x4) |
PCI Express x8 | 2 (one is used by Grafikadapter) |
PCI Express x16 | |
Disk Drive Bays | |
5.25" Drive Bays | 3 |
All | 3 |
Open | |
3.5" Drive Bays | 2 |
All | 1 |
Open | 1 |
Hidden | |
Front Panel | 1xOn/Off, 1xReset |
Switches | 1xHDD LED, 1xOn/Off LED |
LEDs | 2xUSB |
Connectors | |
Cooling | 1x8cm, 1x12cm |
Fans | No |
Hot Swappable Fan | Yes |
Removable Air Filter | |
Power Supply | ATX PS/2 |
Type of Power Supply | 400 W |
Output Power | |
Input Voltage Range | 90...264 V |
Operation | |
Temperature | 0...+50 °C |
Humidity | 5...95 % |
Storage | |
Temperature | -20...+70 °C |
Humidity | 5...95 % |
Dimensions and Weight | |
Width | 482 mm |
Height | 177 mm |
Depth | 450 mm |
Color | Beige, Black |
Certifications | |
Standard Compliance | RoHS |
- DB Cascade Cable for PS/2 KVM Cable
coming soon
