Features:
- Optimized for vehicle use – outperforms handhelds and tablets in vibration environments.
- Easy to move between different vehicles and locations.
- Personalize device to minimize abuse.
- Removable for anti-theft reasons.
- Simple installation and service/upgrade.

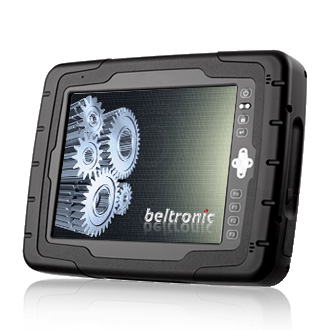

The Bit-RTC 0816 is the first computer in a new series designed to be used fixed-mounted in environments with a lot of vibrations, such as vehicles or process industry, but still be portabel for flexibility.
We call this Flexible Fixed! As durable as a fixed-mount computer but with the flexibility like a handheld device.
The Bit-RTC 0816 comes with the powerful Atom N270 processor at 1.6GHz, 2GB internal memory and runs HDD or SSD.
A new improved vehicle dock is accompanying the jFlex, to further extend the life time expectancy for a device in this class.
Basic system | |
Size | L260 x H198 x W43 |
Weight | 1,9 kg |
Processor | Intel Atom 1.6GHz N270 |
RAM | 2048MB |
Boot media | HD 80GB automotive, SSD 16, 32 or 64GB |
Display | 8.4” SVGA (800x600), 450 NIT |
Touch screen | Resistive 4-wire Touch Screen |
Operating system | Windows Embedded standard, Windows 7 Pro, Windows XP Pro |
Interface | 1 external USB 2.0, DC-input, Docking connector, 1 RJ45 Ethernet |
Power supply | 9–21 VDC, Battery 44Wh, 7.3V |
RF options | WLAN 802.11n and Bluetooth 2.0 EDR. class 1 |
Accessories | Mounting solutions, Rugged keyboards, Cables and adaptors, GPS, 3G-modems |
Vehicle Dock | 3x USB ports, 2x RS232, 9-36 VDC |
Environment | |
Temperature | Non-operating -30°C to 70°C, Operating -20°C to 50°C |
Sealing level | 10 - 95% RH, non-condensing, Water & Dust proof, IP65 |
Vibration | 5 - 500 Hz/4.5 g RMS 3 hours X Y Z (non-rotating disks) |
Shock | 30 g for 11 ms (non-rotating disks) |
Drop test | 3 feet on concrete |
Housing | Aluminium, powder coated |
- Vehicle dock
- Power AC/DC Molex with Cable
- Extra Battery
- Cable Power Lighter/DC-plug
- Sacci Hook
- Passive Dock
coming soon
