Features:
- Intel Core2Duo T7400 processor
- 2 Gbyte DDR2 Memory standard
- 6 free PCI slot with Full-Size Support
- 381mm / 15” diagonal viewing area
- 1024 x 768 pxs screen resolution
- 16M Colors
- Keyboard with backlight and integrated mouse device
- Wide Range DC Supply (10-32V)
- Wide Range AC Supply Input up to 400 Hz
- Wide operating Temperature Range (-20°C)
- Full IP65 / NEMA4 compliant
- 2 Years Warranty

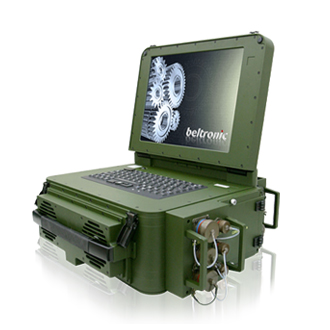

Bit-RPC 1522D-MIL
The Bit-RPC-MIL is a completely fully rugged portable computer that has been designed for use in the toughest environments. It can be used where laptops and normal portables fail. This extra robust portable was developed to cope with the daily strains which factory tools are exposed to eg., outdoor use, service and repair, flight path system analysis, geophysical exploration, and naval and military use.
The high resolution of 1024 x 768 ensures the readability even from bigger distances and in harsh environments. The Bit -RPC can be expanded by use of up to 6 x PCI slots. The Bit -RPC can be used anywhere in the world; the power supply can work with AC voltages from 90 to 265 at 50-60Hz or, using a cigarette lighter cable in the car, with DC voltages from 12-32. The built-in backup battery allows up to 30 min independent working.
Computer System | |
Backplane System | PICMG 1.0 with 6x free PCI Full Size Slots and 1x CPU Slot |
CPU Card | PICMG Core2Duo CPU Card with Intel 945 GME Chipset |
CPU | Intel Core2Duo T7400 (2.16 GHz) |
Memory | 2GByte DDR2 Standard, optional up to 4 GByte |
Grafik Controller | Integrated in Chipset with LVDS Interface for internal Display and VGA Port |
| |
HDD | Removable 2.5” 80GByte SATA automotive drive behind Service Door |
Optical Drive | Slimline SATA DVD Writer with Tray behind Service Door |
| |
Size | 381mm / 15,0” Industrial Grade TFT |
Resolution | 1024 x 768 pxs native XGA resolution with 16M colours |
Viewing Area | 381mm diagonal active view area (304.1mm x 228.1mm) (~15.0”) |
Aspect Ratio | 4:3 aspect ratio |
Pixel Size | 0,297mm pixel pitch |
Viewing Angle | -75° ~ 75° typ. (H), typ. -60° ~ 50° (V) |
Backlight | 250 cd/m² backlight with 2 CCFL tubes, replaceable |
| |
Ethernet | 2x Gigabit Ethernet behind Service Door |
USB | 1x USB 2.0 behind Service Door, 4x USB 2.0 on CPU Board (ICD) |
Serial Port | 1x RS232 (COM2) behind Service Door |
Parallel Port | 1x IEEE1284 on CPU Board (ICD) |
External Display | 1x VGA behind Service Door on HD-SUB15 |

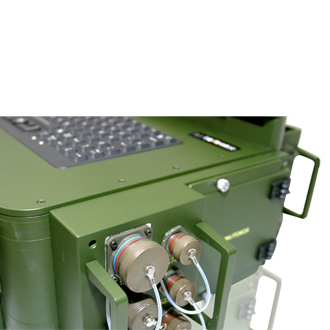

Connector Side Box | The unit comes with blank connector side box per default. Customers may mill their own breakthroughs for additional connectors. As alternative, customer may provide a connector list and the unit will be delivered with pre milled connector side box. Please consult factory for this option. |
| |
Supply Voltage DC | 10V-32V DC input on IP65 Round Connector |
Supply Voltage AC | 90V-240V with 45Hz-400Hz on IP65 Round Connector |
UPS (as Option) | Integrated UPS with Battery for approx. 10~15min. Runtime |
UPS Monitoring | Monitoring with Serial Interface (COM1) with legacy driver in Windows XP pro |
| |

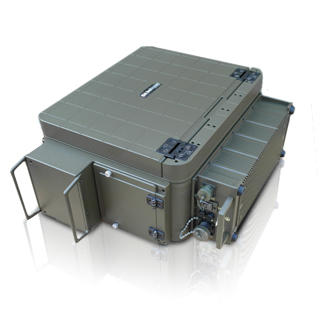

Material | Precision milled aluminum enclosure |
Coating / Painting | Surtec 650 surface treatment, Olive powder coating |
Outside Dimensions | (H)198mm x (W)491mm x (D)474mm outside dimension |
TFT Protection | Hardened non-reflecting protection glass |

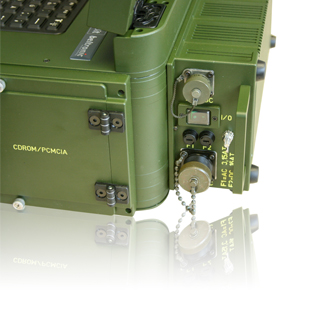

Special Features | Drives behind Service Door, Front sided fully environmental sealed Heat Exchanger |
Weight | Approx. 20 kg |
| |
Temperature | MIL-STD 810F Method 501.4, Proc I (71°C) & II (50°C) (High Temp) MIL-STD 810F Method 502.4, Proc I (-40°C) & II (-20°C) (Low Temp) MIL-STD 810F Method 503.4, -40° to 71°C non-operating |
Humidity | MIL-STD-810F Method 507.4, 5 cycles á 48h each at +30°C…+60°C at 95% rh |
Operating Altitude | MIL-STD 810F Method 500.4 Proc I 15 kft & Proc II 10 kft |
Fungus | MIL-STD 810F Method 508.5, Aspergillus niger, Aspergillus flavus, Aspergillus versicolor, Penicillium funiculosum, Chaetomium globosum |
Contamination | MIL-STD 810F Method 504, Fuels (F-34), Hydraulic Oil (MIL-H-5606), Lubricant Oil (O-156), Coolant dielectric fluid (S-1748) |
Vibration | MIL-STD 801F Method 514.5, Proc I (max. 2g RMS) |
Shock | MIL-STD 810F Method 516.5, Proc I, Proc IV, Proc IV |
Saltfog | MIL-STD 810F Method 509.4 |
Rain | MIL-STD 810F Method 506.4 |
IP Protection | IP65 (DIN EN 60259 / IEC 529) / NEMA4 |
| |
Conducted Emissions / CE | CE-EFA-1 Power Leads, 20Hz…100MHz (similar to MIL461E CE101 & CE102) CE-EFA-2 Control and Signal Leads,20Hz…100MHz (similar to MIL461E CE101 & CE102) CE-EFA-3 Power Leads, Exported Transients |
Radiated Emissions / RE | RE-EFA-1 Electric Field, 50kHz…40GHz (similar MIL461E RE102) |
Conducted Susceptibility / CS | CS-EFA-1 Power Leads, 20Hz…50kHz (similar MIL461E CS101) CS-EFA-AGE-2 Power & Signal Leads, 50kHz…400MHz (Bulk Current Injection Method) (similar MIL461E CS114) CS-EFA-4 Power Leads, Imported Spikes & Transients |
Radiated Susceptibility / RS | RS-EFA-AGE-3 50kHz…18GHz (similar MIL461E RS101 & RS103) |
Electrostatic Discharge / ESD | ESD-EFA-1 - 150pF / 330O, Air Discharge - 4 kV, 6 kV, 8 kV, 10 kV and 12 kV on 7 test points - 5 pulses shall be applied with a minimum period between the pulses of 10 seconds - Positive and Negative Polarity |
